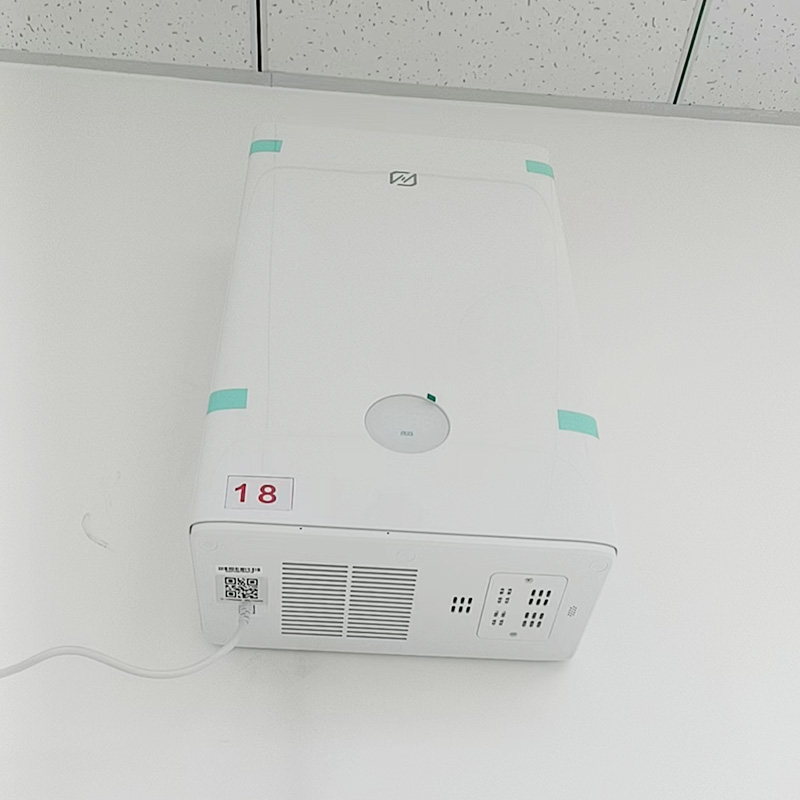

Air purifier (wall-mounted type)

Product application: It is suitable for air disinfection in laboratories, general operating rooms, delivery rooms, blood wards, burn wards, protective isolation wards, and intensive care wards. The disinfection supply center inspects the air disinfection in the packaging sterilization area, the sterile item storage area, and the intensive dialysis center. Air disinfection in places such as outpatient clinics, offices, examination rooms, treatment rooms, and infectious disease clinics.

Technical parameter requirements:

1. It adopts plasma + active mist ion disinfection and sterilization, which is broad-spectrum and thorough in sterilization. It is equipped with a HEPA high-efficiency composite filter, which can effectively remove volatile gases, various odors and filter out large dust particles such as hair and dust in the air.

2. Appearance dimensions: 316.5×310×680 (mm ³), portable floor-standing device;

3. Human-machine coexistence, continuous dynamic disinfection can be carried out when people are present, causing no harm to people or items.

4. The overall weight of the machine is no more than 9kg, and the rated circulating air volume is no more than 650m ³ /h.

5. The clean air delivery rate (CADR) for particulate matter is ≥600m ³ /h, and that for formaldehyde is ≥130m ³ /h.

6. The cumulative purification capacity of particulate matter (CCM) grade is ≥P4, and the cumulative purification capacity of formaldehyde (CCM grade) is ≥F2.

7. Rated power: 70W; Power supply: 220V 50Hz

8. It can actively release hydroxyl radical disinfection factors into the environment. The hydroxyl radical release efficiency should be no less than 6.9×10 ^ 11 per second, and the lifespan of the released hydroxyl radicals should be no less than 8 minutes.

9. The safety of the hydroxyl radicals produced was verified through acute inhalation toxicity tests.

After the equipment has been working continuously for 1 hour, the residual ozone content is less than 0.003mg/m³.

11. The device is equipped with 4G/5G communication chips and can be connected to the Internet of Things device management platform. After logging into the management platform, users can view the device's operating parameters and status, as well as the service life of consumables online. They can also remotely control the device's on and off status online.

Configuration list:

1. One mainframe

2. One remote control

3. One instruction manual

4. One certificate of conformity
