Air purification station

Function description

◎ Ceiling-mounted air purifier for laboratory use ◎ Reduce the concentration of air pollution in the laboratory, remove PM2.5, and improve the laboratory environment

◎APP intelligent remote control allows you to view the filtration effect in real time. ◎ Historical records such as temperature, humidity and air quality can be viewed

Safety standard

The mechanical structure performance meets: JG/T 385-2012;

Filtration performance standard: China JG/T 385-2012 French AFNOR NFX 15-211:2009 American SEFA 9

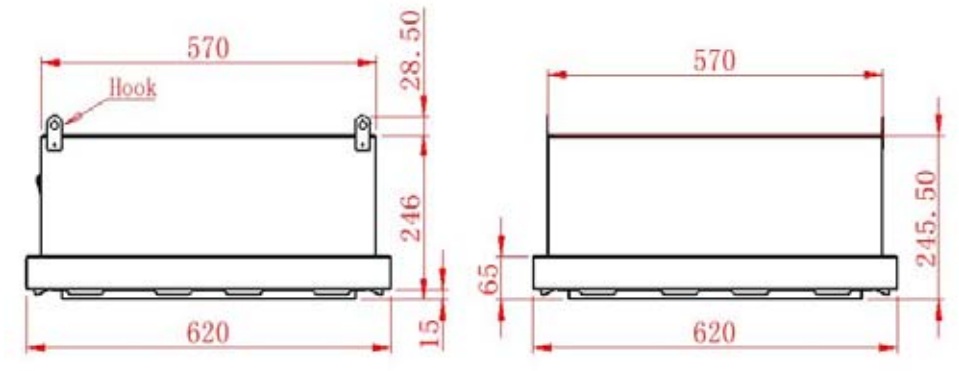

Product size

External dimensions: L620*W620*256mm \ nInstallation method: Ceiling-mounted

Electrical parameters

Rated voltage: 100-230V/50-60HZ \ nInternal working voltage: DC24V \ nRated power: 35W/0.35A

Air processing capacity

VOC removal rate of 120-220 m ³ /H is ≥99%, and noise: ≤45 dB

The material of the equipment is made of high-quality galvanized sheet with epoxy polyester coating

Standard configuration

◎ Intelligent control system ◎APP remote service platform ◎RS485&Modbus communication protocol, can be connected to BMS system

It can be started/stopped through the mobile phone APP

The operation mode or operation parameters can be selected or set through the mobile phone APP

The equipment type, filter model/configuration and lifespan, as well as the operating time can be set and displayed with one click

The air quality monitoring module enables real-time viewing or retrieval of historical records

The temperature and humidity monitoring module enables real-time viewing or retrieval of historical records

Fan failure, filter life management and automatic fault diagnosis

It can be equipped with H14 or U17 high-efficiency and ultra-high-efficiency particle filters

Airs-soak molecular filters can be equipped

Molecular filter AT60◎ V Organic Volatile Substances ◎M: For VOC, acid and formaldehyde combined gases

1P and 1C filters can be equipped as required by the experiment

Optional items

◎VOC Gas Monitoring Module ◎HCL inorganic acid Gas Monitoring Module ◎ Formaldehyde Gas Monitoring Module ◎HEPA electronic pressure loss monitoring module

Weight and size

Product weight: 20 KG; Packaging size: L650*W650*H300 mm = 0.13 m ³; Transportation weight: approximately 23 KG
