Packaging sizeL×W×H(mm) :1200×400×265(mm)
Main material:304 Stainless steel
◆ Applicable environment: It can be used simultaneously for rinsing the body, eyes and face, providing greater protection for personal safety. It is required that the installation site be equipped with floor drain drainage facilities to promptly divert the rinsing water

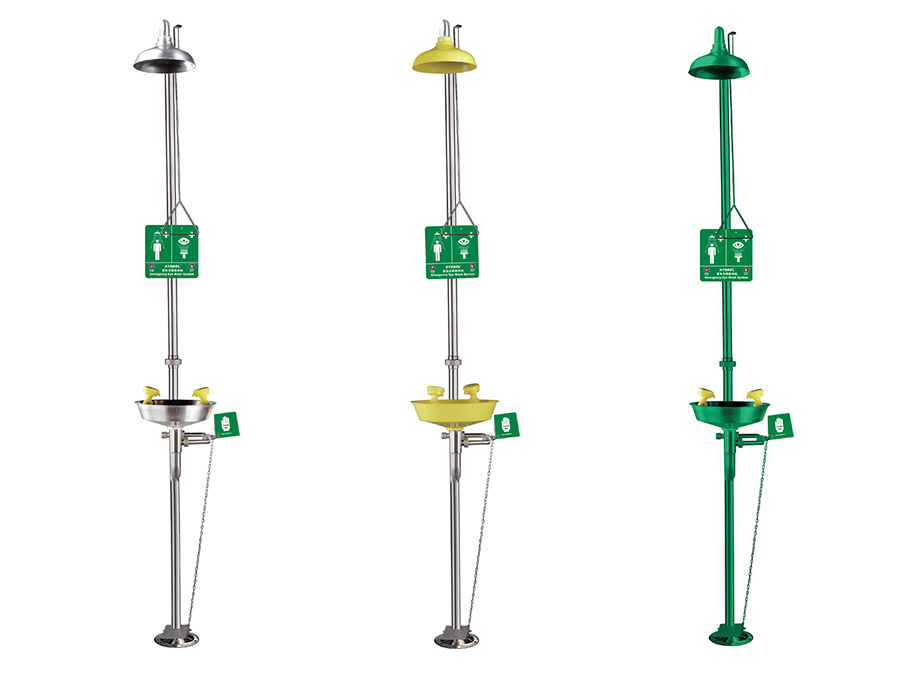

◆WG7053F and WG7053FG are equipped with 304 stainless steel shower heads and basins, while WG7053FY is equipped with AES engineering plastic shower heads and basins
◆ Starting device: 304 stainless steel triangular pull ring, push hand and foot pedal
◆ Water pressure used: Not less than 210 kpa (30psi,2bar,2.1Kgf/cm2 kilograms force/square centimeter)

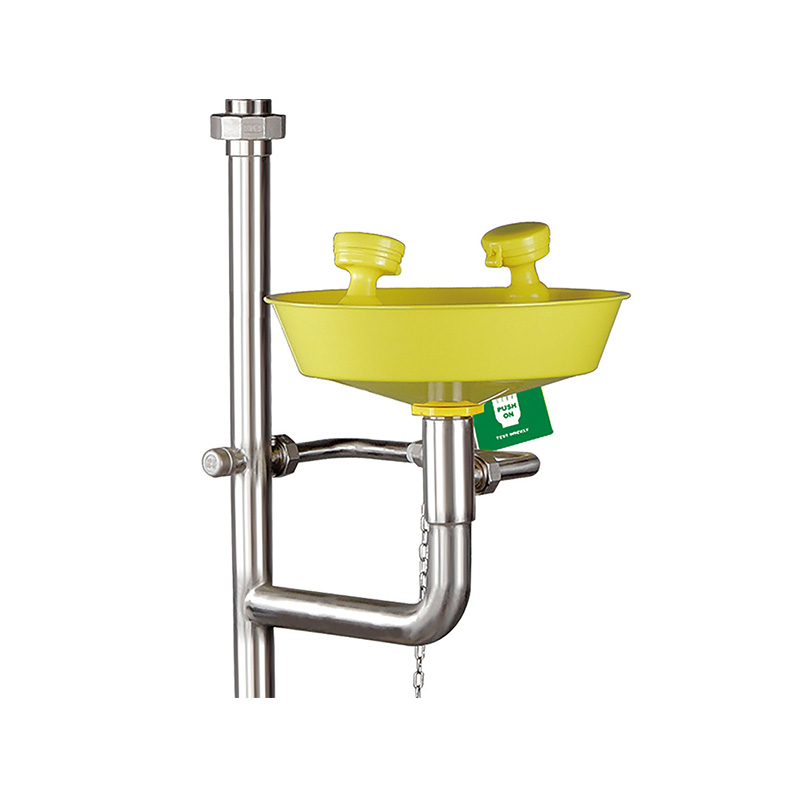

It comes with a standard eyewash station bracket
◆ Specially configured eyewash station fixed bracket, more firmly install the eyewash shower equipment, and the length is adjustable (0-)
8cm adjustment space
Model | Packaging sizeL×W×H(mm) | Main material | BasinDx H/cm:32×9.5 | Flower wine hoodDx Hcm:25.5×7.5 | Flow rate of eye wash/facial wash station(L/min) | Flow rate of the shower(L/min) | It is recommended to use water pressure./kPa | Water inlet | Get out of the water | Water valve |
BR400S | 304SS | 304SS | ||||||||
BR400S02 | 1200×400×265 | 304 Stainless steel | AES Plastic | AES Plastic | 11.4 | 76 | 210 | 1" | 1" | 1/2" 1" |
BR400S03 | 304SS | 304SS |
