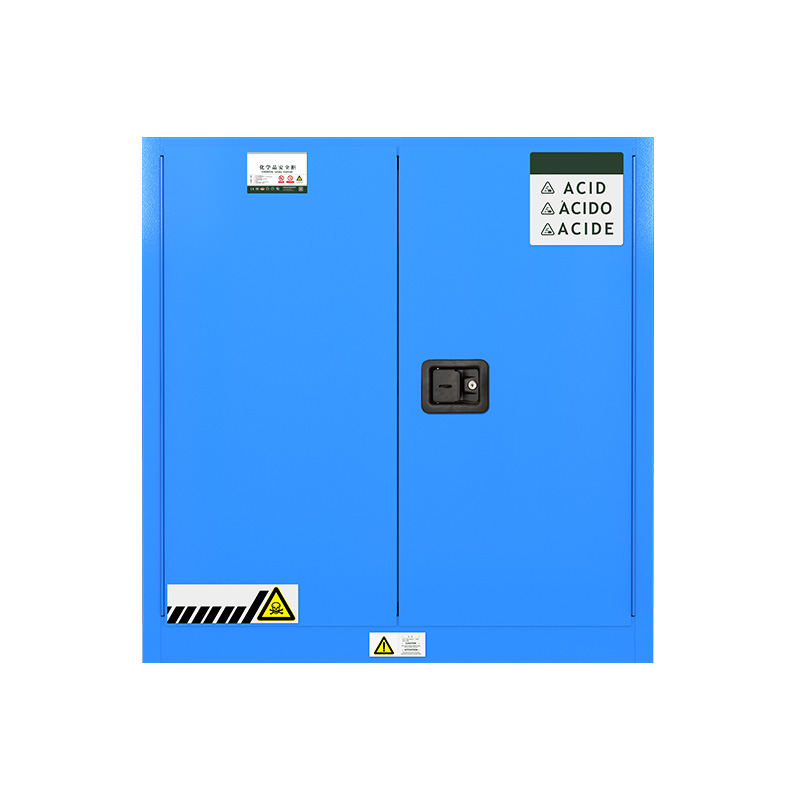

Chemical safety cabinet

Background analysis

With the rapid development of social economy, the chemical industry has become a pillar industry of the national economy, and China has become a major country in the production and use of hazardous chemicals, in quantity and scale.

In recent years, with the occurrence of major accidents, systematic safety risks have formed in the production, storage, transportation, use, disposal and other links of hazardous chemicals, seriously damaging the safety of people's lives and property, affecting high-quality economic development and social stability, and people talk about "chemical". The policy environment, social environment and public opinion environment have encountered more severe challenges than ever before, and the safety work of hazardous chemicals needs to be comprehensively strengthened!

From the analysis of policies and regulations issued in recent years, the relevant regulatory documents for the storage of hazardous chemicals will be gradually updated and improved in the future, and since the issuance of Order 591 of the Regulations on the Safety Management of Hazardous Chemicals in 2011, including the GB18265-2019 issued in 2019, there are requirements for zoning, classification and sub-storage of hazardous chemicals.

Product function

BringHS Chemical safety Cabinet series takes compliance, environment, health and safety as the product concept, and solves the problem of improving the identification of dangerous chemicals (color, logo management), storage order (organized and classified), storage method (isolation, separation, separate storage) adaptability in the storage process of dangerous chemicals. At the same time, it can facilitate the fire personnel to identify dangerous goods in the event of fire. With fire prevention and overflow control, reduce the risk of fire and ensure the rescue time when the fire occurs; Convenient for accidental storage or use in the place, the principle of proximity, improve work efficiency.

The products have passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification, EU CE and other related certifications. The application industry involves education and research, inspection and quarantine, medical health, food and pharmaceutical, chemical industry, environmental safety, national defense and many other fields.

Product characteristic description

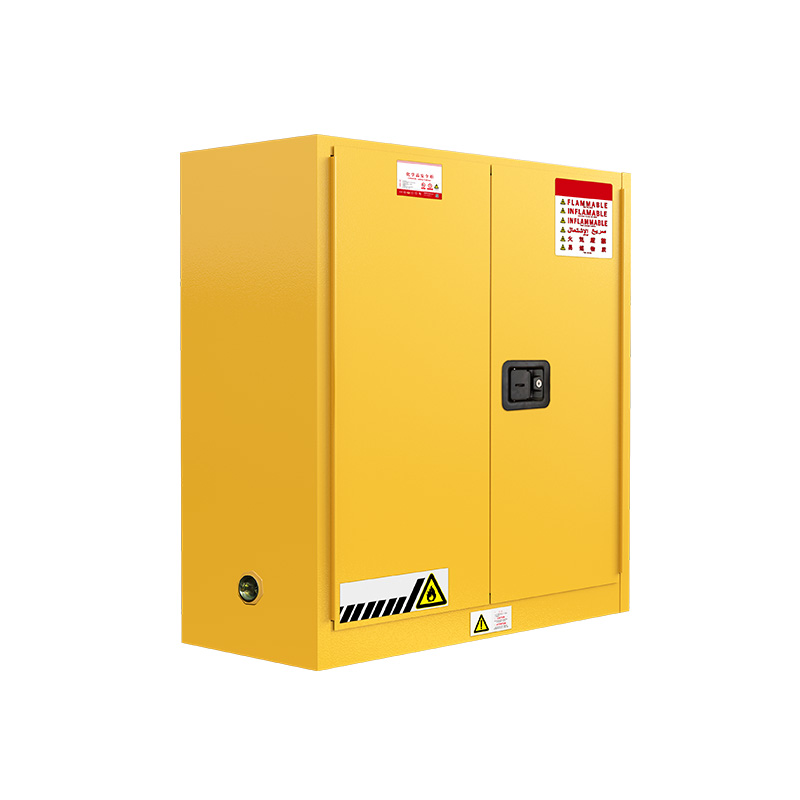

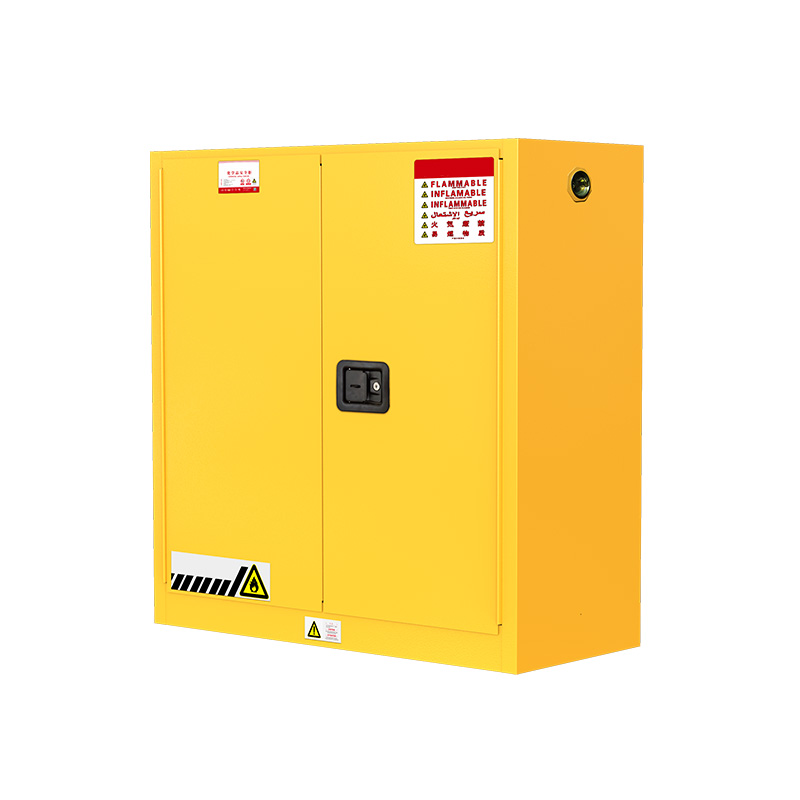

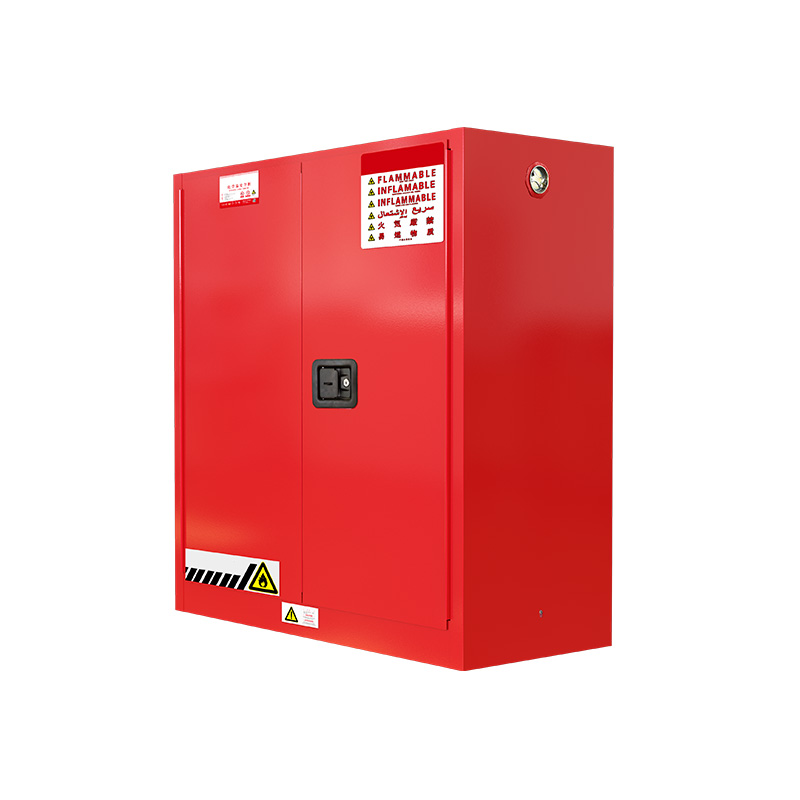

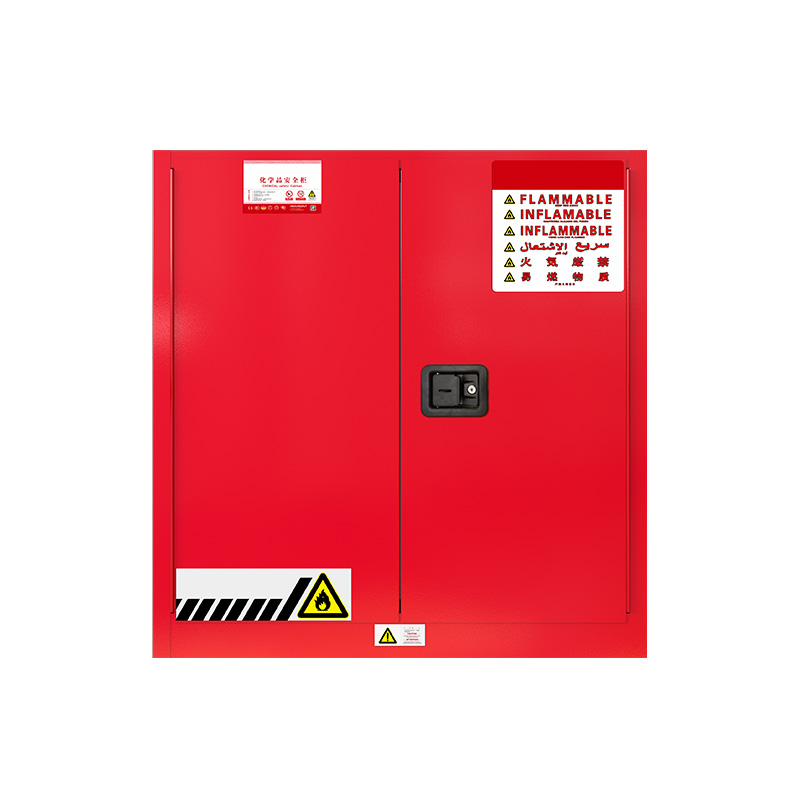

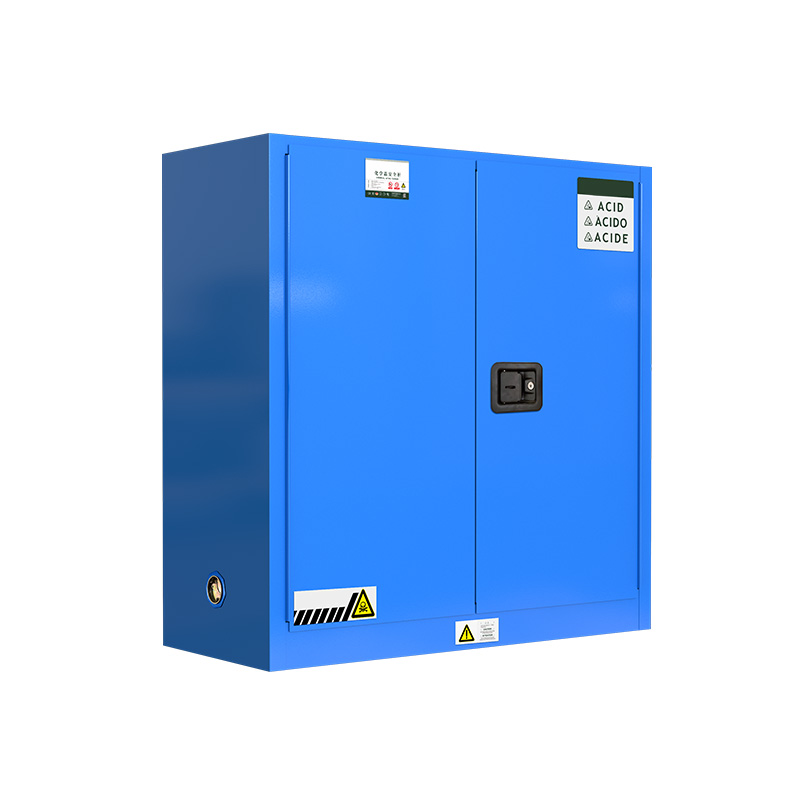

1. All double-layer fireproof steel plate structure, two layers of steel plate separated by 38mm insulation layer, can effectively isolate the heat source;

2. Thickness ≥1.0mm high-quality cold rolled steel plate through spot welding, longer service life, better fire resistance;

3. The use of double GA lock three-point linkage type door lock (mechanical anti-theft lock in line with the relevant provisions of GA/T 73), do not turn the handle can also ensure complete closure, a large degree of fire safety, and achieve double lock control;

4. Piano hinge smooth closure, easy to open and close 180 degrees;

5. The cabinet door is equipped with double keys (key lock is specially equipped with non-open), to achieve double double lock security management;

6. 50mm high leak-proof liquid tank so that the accidental outflow of liquid does not spill;

7. The warning label of professional standards is obvious;

8. Equipped with a double air vent with an anti-closing device, purposefully placed at the bottom and its opposite top;

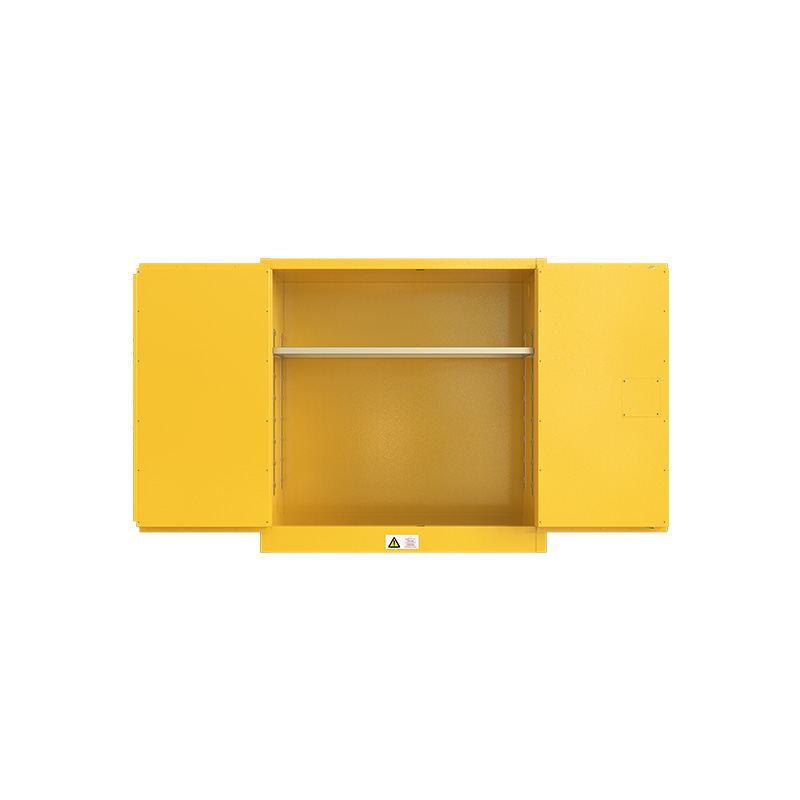

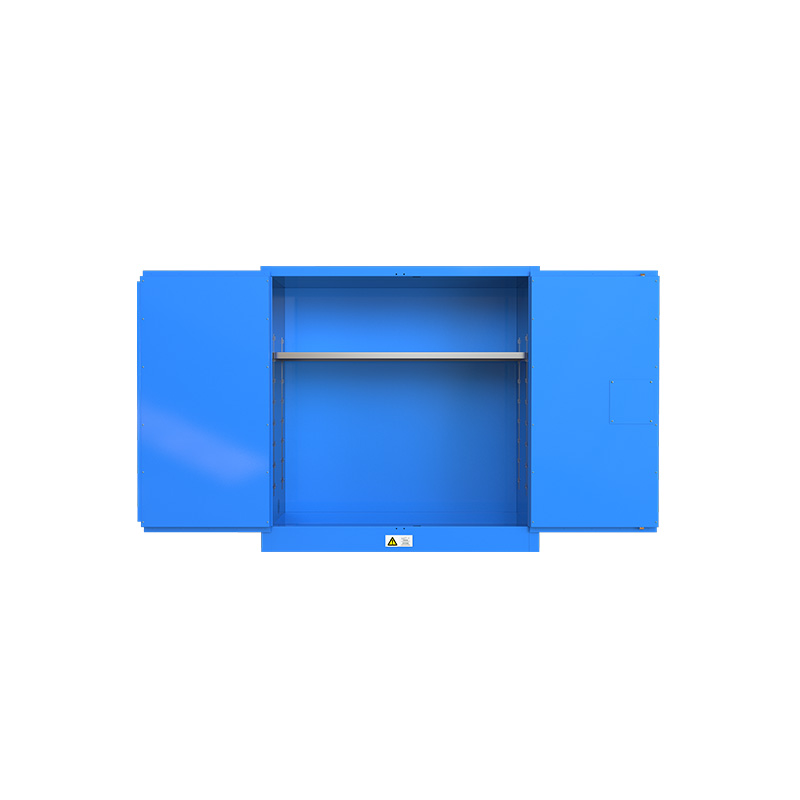

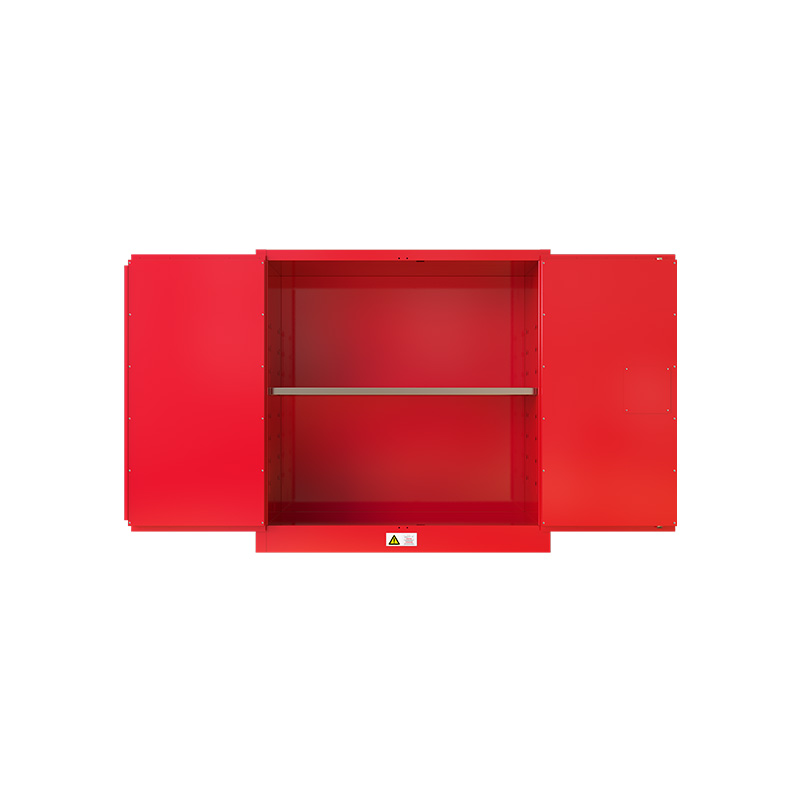

9. The unique spill-proof laminate can be freely adjusted between the upper and lower, bearing 100kg;

10. The cabinet inside and outside are sprayed with epoxy resin electrostatic spraying, maintain high finish, minimize the impact of corrosion and moisture;

11. In strict accordance with OSHA standards, the cabinet body is equipped with electrostatic ground conduction port to facilitate the connection of electrostatic ground wires.

Product selection

1. Fan: built-in fan on the top of the cabinet, automatically extract the air in the cabinet, to achieve ventilation in the cabinet;

2. Time control switch: automatically control the switch time of the fan in the cabinet in time, and control the air circulation in the cabinet at a fixed time;

3. V-shaped reinforced laminate: galvanized material, V-shaped reinforced structure, effective bearing capacity up to 150kg;

4. 3M reflective label: strong reflective effect, high temperature resistance, no foaming, day or night can achieve the protective effect of safety warnings;

5. Electronic password lock: LCD electronic password lock, to achieve double lock control;

6. Moving casters: the cabinet is installed with polypropylene moving casters, easy to move and transfer the cabinet;

7. Self-closing door: can effectively control the door closing sequence, to ensure that the door is normally closed, equipped with a fuse limit device, when the external temperature continues 70℃ automatically disconnected, the door automatically closed, to ensure the safety of items in the cabinet;

8. Time control + temperature and humidity alarm: can achieve real-time monitoring of the temperature and humidity in the cabinet, beyond the set temperature and humidity automatic alarm; And automatically control the switch time of the fan in the cabinet in time, and control the air circulation in the cabinet regularly;

9. Vibration alarm: the movement of the cabinet center alarm, anti-theft, to prevent the movement caused by the dumping of items in the cabinet;

10. Smoke alarm: when the cabinet produces smoke, automatic monitoring alarm;

11. PP tray: corrosion resistant polypropylene tray, with laminates, can store acid and alkali chemicals;

12. PP acid-base box or reagent turnover box:

12.1 PP acid-base box is made of polypropylene material, which can be customized according to the size of reagent bottle, and can store acid-base chemicals;

12.2 Reagent turnover box is made of yellow PE material and is molded in one opening. The size of reagent bottle is shown in the product manual.

Product use and maintenance

1. Classification: According to the classification of chemical attributes, do not mix incompatible, interacting, and violent reaction chemicals;

2. Specifications: according to the specifications of the storage, laminate storage area, laminate spacing height to select the size of the storage equipment;

3. The storage requirements of the laminates: the load bearing of the laminates should be fully considered, and it is strictly prohibited to exceed the limit of storage;

4. Cabinet storage environment: warm in winter and cool in summer, dry, light, easy to ventilation environment, away from the surrounding fire source, heat source, power supply and no spark conditions;

5. Cabinet dripping, running, leakage and other situations occur, in strict accordance with the SDS requirements for personal protection after timely treatment;

6. Keep the cabinet clean, non-access period of the cabinet door should be in a closed state.
